Transverse Drum Cutter Attachments

Rotary drum cutters have shown an increase in production

Precision Hydraulic Rock Cutting Attachments for Excavators

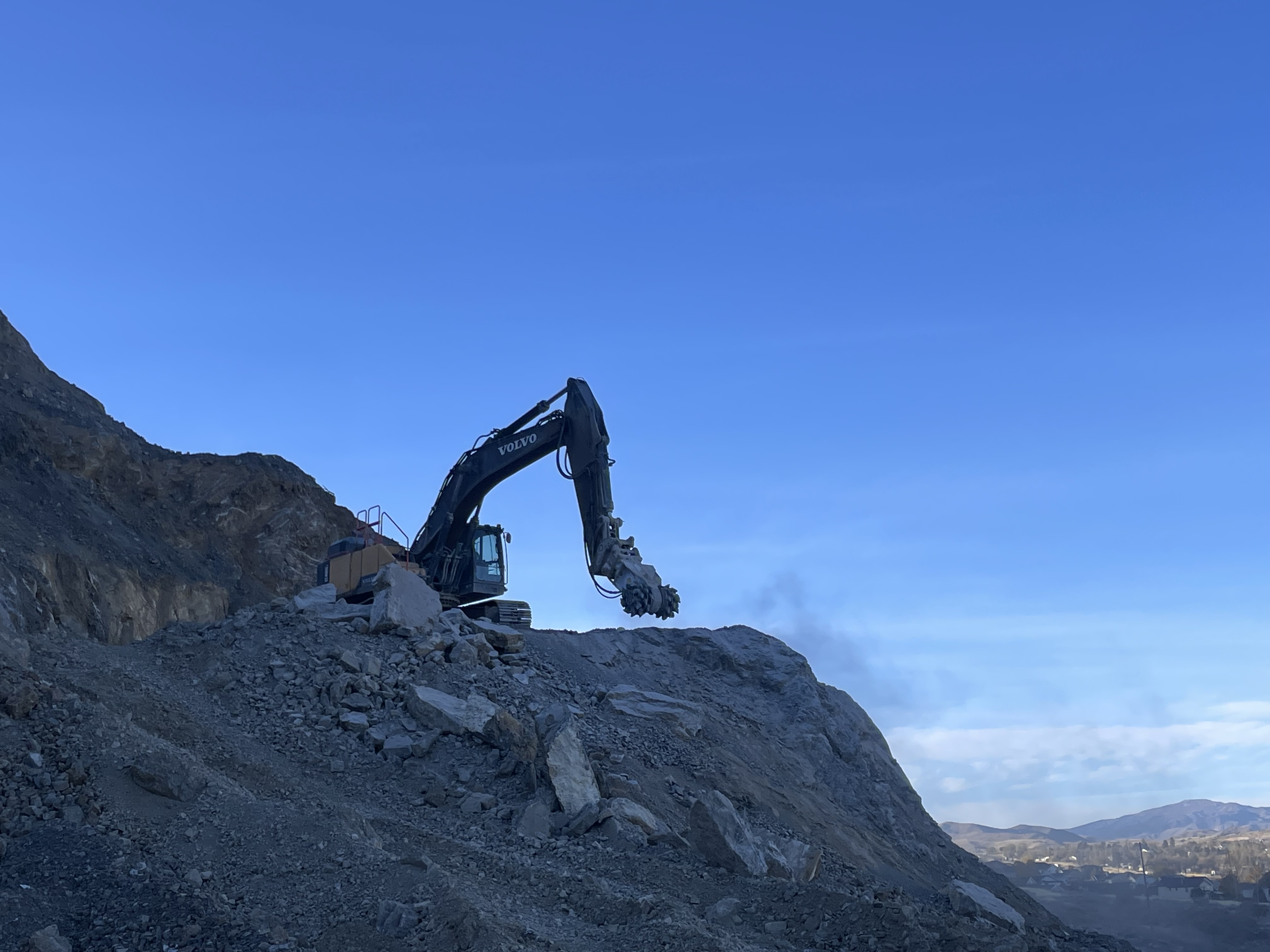

Antraquip transverse drum cutters deliver unmatched power and control for tunneling, trenching, mining, and demolition. Built in the USA with robust components and advanced hydraulic systems, these drum cutters are proven in the toughest conditions, cutting material with uniaxial compressive strength (UCS) up to 25,000 PSI.

Model	Excavator Size Class	Cutting Head Diameter	Cutting Head Width
AQ-1S Drum Cutter	1-3 ton	9in (230mm)	19in (485mm)
AQ-1 Drum Cutter	2-8 ton	11in (280mm)	21in (535mm)
AQ-2 Drum Cutter	5-15 ton	16.5in (420mm)	25in (635mm)
AQ-3 Drum Cutter	12-20 ton	22in (560mm)	31in (790mm)
AQ-3XL Drum Cutter	15-28 ton	23in (585mm)	32in (815mm)
AQ-4 Drum Cutter	25-45 ton	29in (735mm)	40in (1.015m)
AQ-4XL Drum Cutter	40-50 ton	28in (710mm)	49in (1.245m)
AQ-5 Drum Cutter	50-80 ton	33in (840mm)	53in (1.345m)
AQ-6 Drum Cutter	70-180 ton	40in (1.015m)	68in (1.730m)

AQ-1S Drum Cutter

Excavator Size Class: 1-3 ton
Cutting Head Diameter: 9in (230mm)
Cutting Head Width: 19in (485mm)

AQ-1 Drum Cutter

Excavator Size Class: 2-8 ton
Cutting Head Diameter: 11in (280mm)
Cutting Head Width: 21in (535mm)

AQ-2 Drum Cutter

Excavator Size Class: 5-15 ton
Cutting Head Diameter: 16.5in (420mm)
Cutting Head Width: 25in (635mm)

AQ-3 Drum Cutter

Excavator Size Class: 12-20 ton
Cutting Head Diameter: 22in (560mm)
Cutting Head Width: 31in (790mm)

AQ-3XL Drum Cutter

Excavator Size Class: 15-28 ton
Cutting Head Diameter: 23in (585mm)
Cutting Head Width: 32in (815mm)

AQ-4 Drum Cutter

Excavator Size Class: 25-45 ton
Cutting Head Diameter: 29in (735mm)
Cutting Head Width: 40in (1.015m)

AQ-4XL Drum Cutter

Excavator Size Class: 40-70 ton
Cutting Head Diameter: 28in (710mm)
Cutting Head Width: 49in (1.245m)

AQ-5 Drum Cutter

Excavator Size Class: 50-80 ton
Cutting Head Diameter: 33in (840mm)
Cutting Head Width: 53in (1.345m)

AQ-6 Drum Cutter

Excavator Size Class: 70-180 ton
Cutting Head Diameter: 40in (1.015m)
Cutting Head Width: 68in (1.730m)

Can be mounted on:

and other hydraulic carriers

ADVANTAGES OF ANTRAQUIP DRUM CUTTERS

Most reliable and robust design utilizing powerful hydraulic motor and spur gears to endure heavy duty applications including cutting of hard rock and reinforced concrete
Various displacement options available (and easily interchangeable) for each motor to match any excavator and application perfectly
Aggressive cutter bit lacing pattern to maximize production output
low vibration and low noise compared to conventional excavation tools
Proudly manufactured in the U.S.A.
