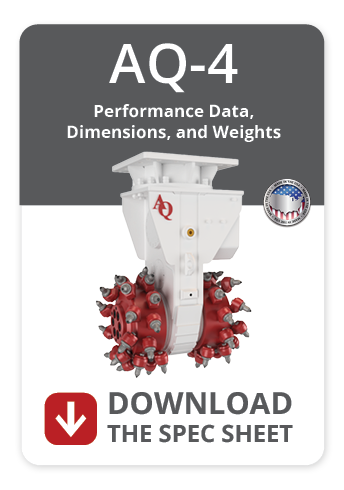

The AQ-4 hydraulic drum cutter is designed for mid-size excavators performing rock trenching, excavation, and demolition. Its high torque output and durable transmission deliver efficient cutting performance in hard rock, producing smooth trench walls, consistent material sizing, and greater control than traditional excavation methods. The AQ-4 is also widely used for tunneling, quarrying, scaling, and reinforced concrete removal.
*Also available in a AQ-4HD, offering a reinforced cutter head for more robust cutting in hard rock. Contact us for more information
Hydraulic Power: 160HP (120kW)
| Technical Data | AQ-4 |
|---|---|
| Cutting Head Diameter (B) | 25 in (710 mm) |
| Cutting Head Width (A) | 40 in (1.015 mm) |
| Oil Flow | 50-85 gpm (190-320 l/min) |
| Max Pressure | 5,800 psi (400 bar) |
| Max Torque | 18,712 ft lbs (25.370 Nm) |
| Max Cutting Force | 17,030 lbs (75.750 N) |
| Operating Weight | 4,125 lbs (1.875 kg) |
Please note hydraulic power rating should not be exceeded
Quantity of cutter bits for standard drums: 48
