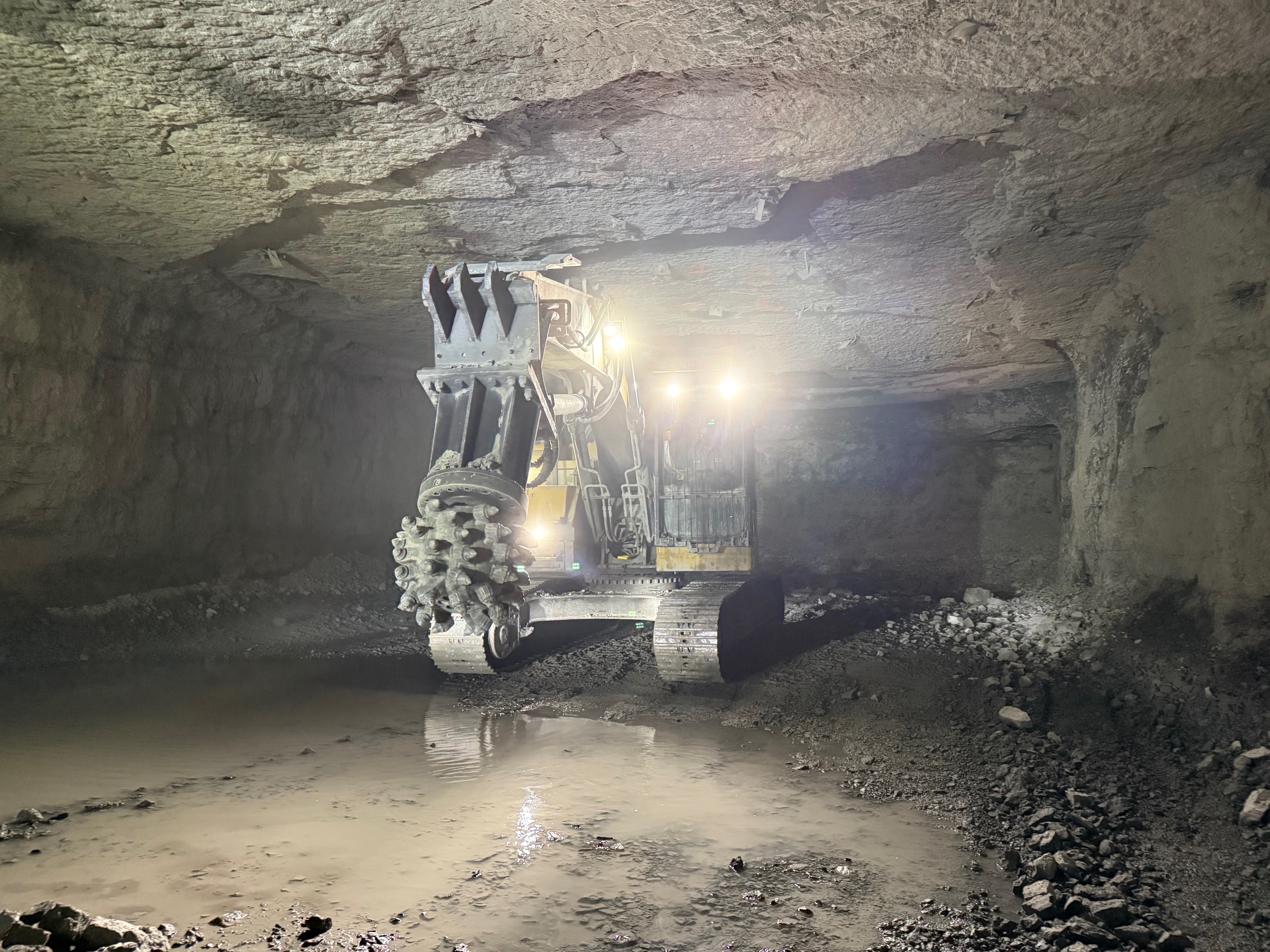

Antraquip Axial cutters utilize a single drum design and are most commonly utilized for narrow trench excavation, cutting of concrete piles, remediation, profiling, scaling and other projects that require extraordinary cutting precision. Antraquip transverse cutters utilize a dual cutting drum system (image to the left) that maximzes the cutting forces transfered into the rock or concrete.
Cutter attachments are available for excavators or other hydraulic carriers in the 3-50t weight class.
| Technical Data | AQ-1L | AQ-2L | AQ-3L | AQ-4L |
|---|---|---|---|---|
| Cutting Head Diameter (mm) | 15 (380) | 16 (400) | 19 (485) | 26 (660) |
| Cutting Head Width (mm) | 15 (380) | 16 (400) | 19 (485) | 26 (660) |
| Speed 1 (displacement variation) | 95 rpm @ 16 gpm (95 rpm @ 60 l/min) |
80 rpm @ 32 gpm (80 rpm @ 121 l/min) |
80 rpm @ 32 gpm (80 rpm @ 121 l/min) |
70 rpm @ 58gpm (70 rpm @ 219 l/min) |
| Speed 2 (displacement variation) | 90 rpm @ 25 gpm (90 rpm @ 95 l/min) |
85 rpm @ 43 gpm (85 rpm @ 163 l/min) |
85 rpm @ 43 gpm (85 rpm @ 163 l/min) | 75 rpm @ 82 gpm (75 rpm @ 310 l/min) |
| Oil Flow Range: gpm (l/min) | 15-30 (45-98) | 30-45 (113-170) | 30-45 (113-170) | 50-95 (190-321) |
| Max Pressure: PSI (bar) | 5,800 (400) | 5,800 (400) | 5,800 (400) | 5,800 (400) |
| Max Torque Output: ft lbs (Nm) | 4,370 (5,940) | 8,740 (11,890) | 8,740 (11,890) | 19,690 (26,740) |
| Max Cutting Force: lbs (N) | 7,028 (31,262) | 13,125 (58,383) | 11,050 (49,150) | 18,204 (80,975) |
| Weight: lbs (Kg) | 750 (340) | 810 (370) | 925 (420) | 2,980 (1,355) |
| Max Input Power: HP (kW) | 60 (45) | 90 (60) | 90 (60) | 160 (120) |
| Recommended Carrier Weight: (tons) | 4-15 (4-15) | 10-25 (10-25) | 10-25 (10-25) | 20-60 (20-60) |
| Recommended Engine Power of Carrier: HP (kW) | 25-90 (20-70) | 80-120 (60-90) | 80-120 (60-90) | 150-240 (110-180) |
