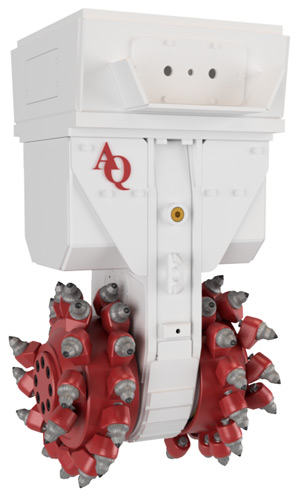

The AQ-4HPT hydraulic drum cutter is designed for high-power trenching applications that require concentrated cutting force in a narrow profile. The HPT series delivers increased power compared to standard AQ cutter heads, allowing for consistent production. Its focused cutting width provides controlled trench dimensions while maintaining the power required for high-output trenching.
Recommended excavators/carrier size class: 25-45 tons
Hydraulic Power: 200HP (150kW)
| Technical Data | AQ-4HPT |
|---|---|
| Cutting Head Diameter (B) | 28 in (710 mm) |
| Cutting Head Width (A) | 33 in (840 mm) |
| Oil Flow | 60-110 gpm (225-415 l/min) |
| Max Pressure | 5,800 psi (400 bar) |
| Max Torque | 22,420 ft lbs (30.400 Nm) |
| Max Cutting Force | 19,120 lbs (85.050 N) |
| Operating Weight | 4,480 lbs (2.035 kg) |
Please note hydraulic power rating should not be exceeded
Quantity of cutter bits for standard drums: 48
