AQ-3XL Transverse Cutter

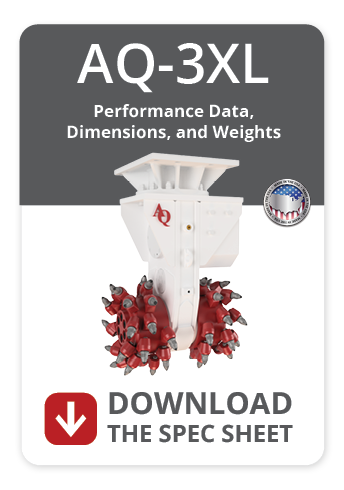

Antraquip AQ-3XL Specification Sheet

The Antraquip AQ-3XL hydraulic drum cutter is the perfect match for 15-28 ton carriers which are so commonly found on most jobsites around the world. This machine’s power and compact design makes it excellent for narrow trenches and other heavy duty applications.

Recommended excavators/carrier size class: 15-28 tons
The perfect match for 15-25 ton carriers

Hydraulic Power: 120HP (90kW)

Technical DataUnitAQ-3XL
Cutting Head Diameter (B) in (mm) 23 (585)
Cutting Head Width (A) in (mm) 32 (815)
Oil Flow gpm (l/min) 34-65 (125-245)
Max Pressure psi (bar) 5,800 (400)
Max Torque ft lbs (Nm) 11,200 (15.185)
Max Cutting Force lbs (N) 11,683 (51.990)
Operating Weight lbs (kg) 2,290 (1.040)

Please note hydraulic power rating should not be exceeded

For hard rock grinding and other heavy duty applications

Quantity of cutter bits for standard drums: 48
