AQ-1S Transverse Cutter

AQ-1S DESCRIPTION

The AQ-1S hydraulic drum cutter is Antraquip’s smallest transverse model designed to operate on mini-excavators and other compact hydraulic carriers. It’s small size yet continued ability to cut soft to medium hard rock, asphalt and concrete makes it an ideal tool for a broad variety of specialized excavation challenges.

Recommended excavators/carrier size class: 1-3 tons
Rock cutters for excavators in 1-3 size class

Hydraulic Power: 24HP (20kW)

Technical DataUnitAQ-1S
Cutting Head Diameter (B) in (mm) 9 (230)
Cutting Head Width (A) in (mm) 19 (485)
Oil Flow gpm (l/min) 5-12 (20-45)
Max Pressure psi (bar) 5,800 (400)
Max Torque ft lbs (Nm) 1,196 (1.620)
Max Cutting Force lbs (N) 3,315 (14.750)
Operating Weight lbs (kg) 265 (120)

Please note hydraulic power rating should not be exceeded

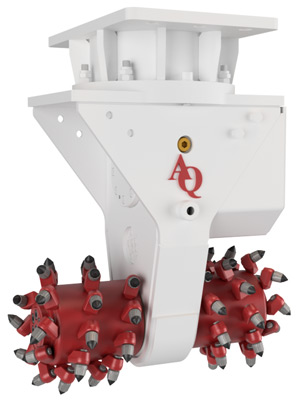

Antraquip's hydraulic powered rock grinding attachments.

Quantity of cutter bits for standard drums: 60
